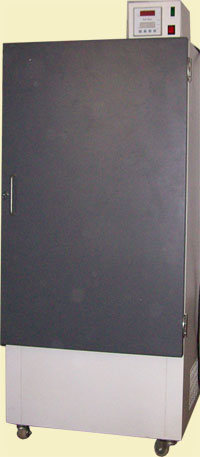

BOD Incubator

Standard size (cu.ft / ltrs)  :               3.5 (100 ltrs) / 6 (170ltrs) / 10 (270 ltrs) / 12 (325 ltrs).
Temperature range            :               5°C above ambient to 60°C.

Specifications
Temperature Controller

  1. Digital temperature indicator cum controller with 0.1°C display resolution.
  2. Temperature controlling accuracy: + 0.5°C.
  3. Display accuracy ±0.5%, full scale.
  4. Sensor: PT100 Class-A type.

Construction

    • Inner chamber made of dully polished Stainless steel 304 grade.
    1. Outer made of Mild Steel with powder coated.
    2. PUF Insulation.
    3. Full visible sub door.
    4. Magnetic gasket, handle and lock for door.
    5. Low wattage lamp.
    6. Forced air circulation provided to maintain temperature uniformity.
    7. Air heater for high temperature.
    8. Powder coated meshed trays.

Refrigeration system:

  1. Built in CFC free refrigeration system with hermetically sealed compressor.
  2. Fin and Tube type air cooled compressor.



Power Supply:

  1. Single phase 230V, 50Hz.

Optional

  1. Suitable voltage stabilizer with initial time delay, high/low voltage cut off.

Note: Due to continuous development SSLIPL reserves the rights to change specifications without prior notice.

<<Back

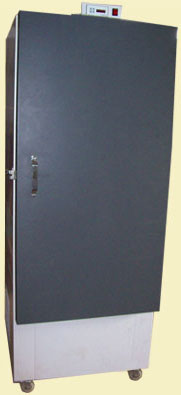

Blood Bank Refrigerator

Blood bank refrigerator used to ensure the safety and continued effectiveness of medicinal products, hospitals, laboratories, and Blood Banks must store drugs, Vaccines, Blood products, and samples at specific refrigeration and freezer temperatures.

Standard                                :               44, 88, 144, 244 & 288 (Capacity in bags).

Temperature range              :               2°C to 4°C.

Technical Specifications:

  Temperature Controller:

  1. Digital Temperature indicator cum controller with display resolution of 0.1°C. PT-100 Sensor.
  2. Controlling accuracy ±0.5°C @ 4°C. Display accuracy ±0.5%, full scale.

Construction:

  1. Inner Chamber made of dully polished Stainless Steel, 304 Grade, Outer made of Mild Steel, powder coated.
  2. Polyurethane Foam Insulation (PUF).
  3. Castor wheels for easy movement.
  4. Handle, lock and magnetic gasket for door.
  5. Full side door opening with visible sub door.
  6. Temperature deviation High and Low Alarms, both Visual and audio.
  7. Power failure alarm.





Refrigeration System:

  1. Single stage refrigeration system.
  2. Hermetically sealed EMERSON Copeland make compressor.
  3. CFC free refrigerant filled.
  4. Fin and tube type air-cooled condenser.

Power Supply:

  1. Single phase. 230 Volts, 50 Hz.

Attachments:

  1. SS Trays.

Optional:

  1. Calibration certificate traceability to NABL standards.
  2. Battery power backup for temperature indicator.
  3. Suitable Voltage Stabilizer.
  4. Full stainless steel model available @ extra cost.
  5. Weekly Circular Chart Recorder.
  6. BBR also available at higher capacities as per customer’s requirement.



Note: Due to continuous development SSLIPL reserves the rights to change specifications without prior notice.
